OVERVIEW

The physical immobilizer.

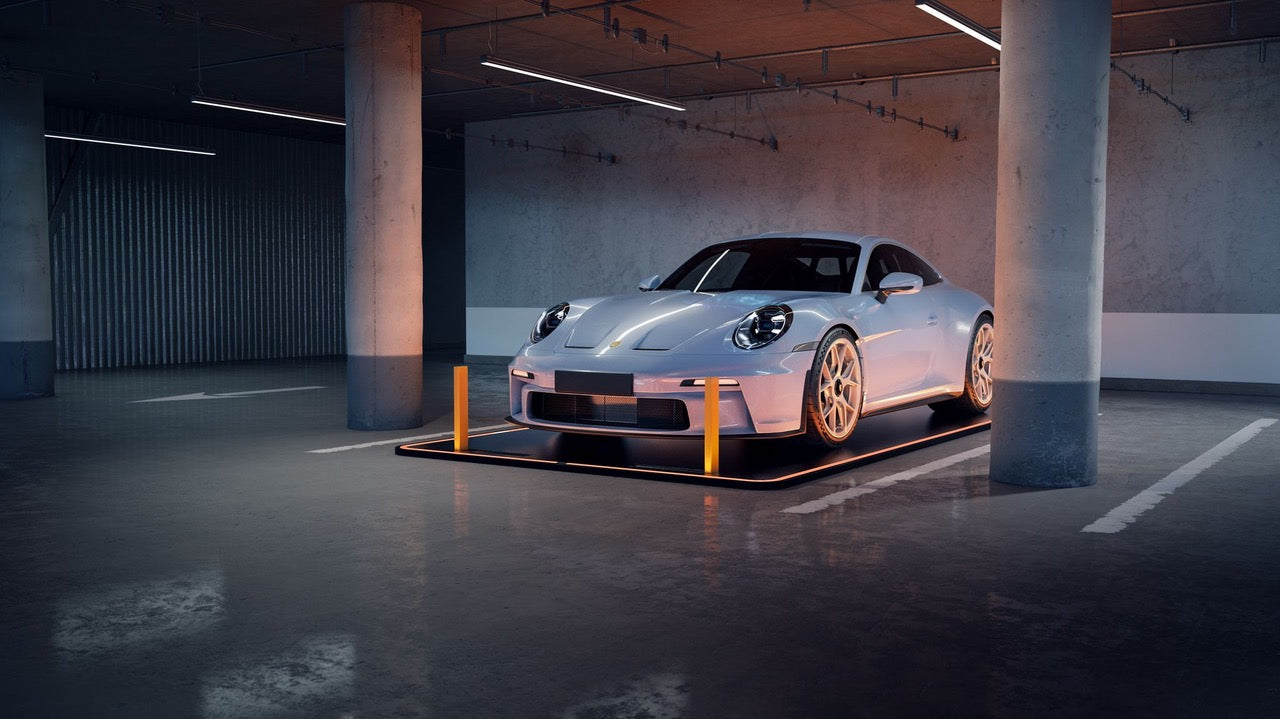

GuardPad is Fahrengold's mechanical immobilizer system, a physical safeguard against vehicle theft that works independently of electronics. Positioned as its own platform on a standard parking space, GuardPad requires no special surface and no structural modification: it is freestanding and does not require building permits.

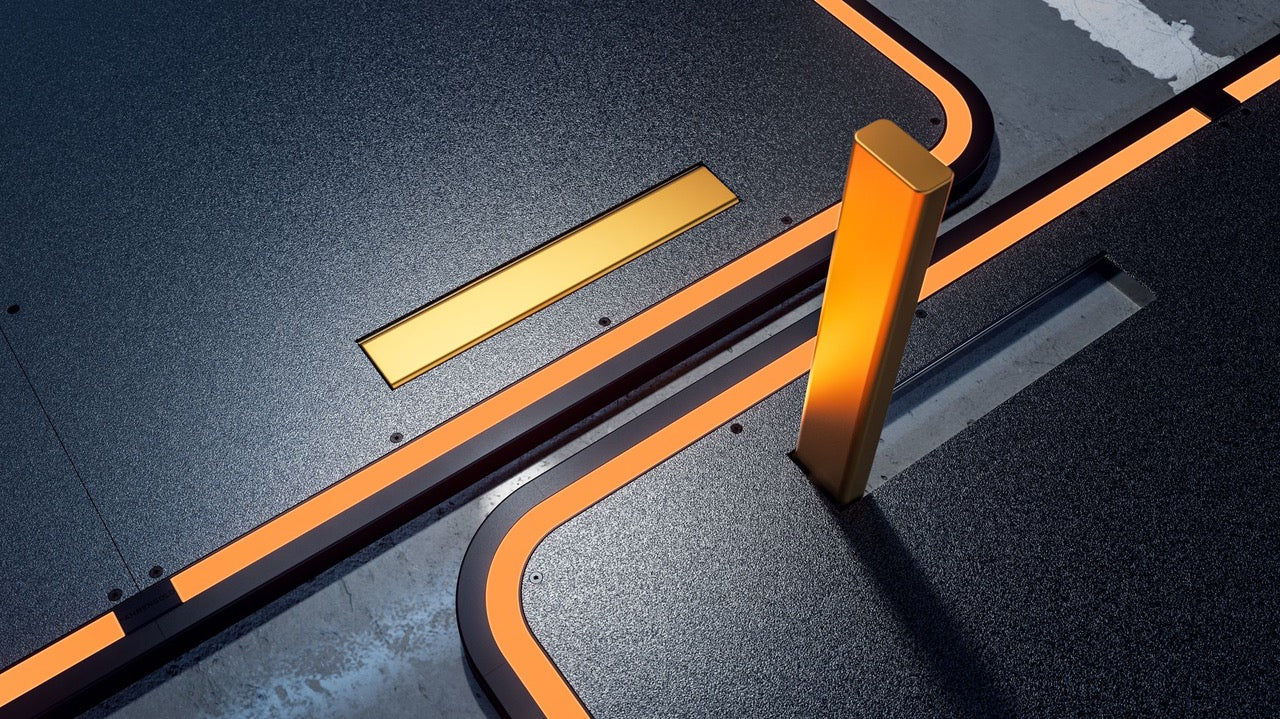

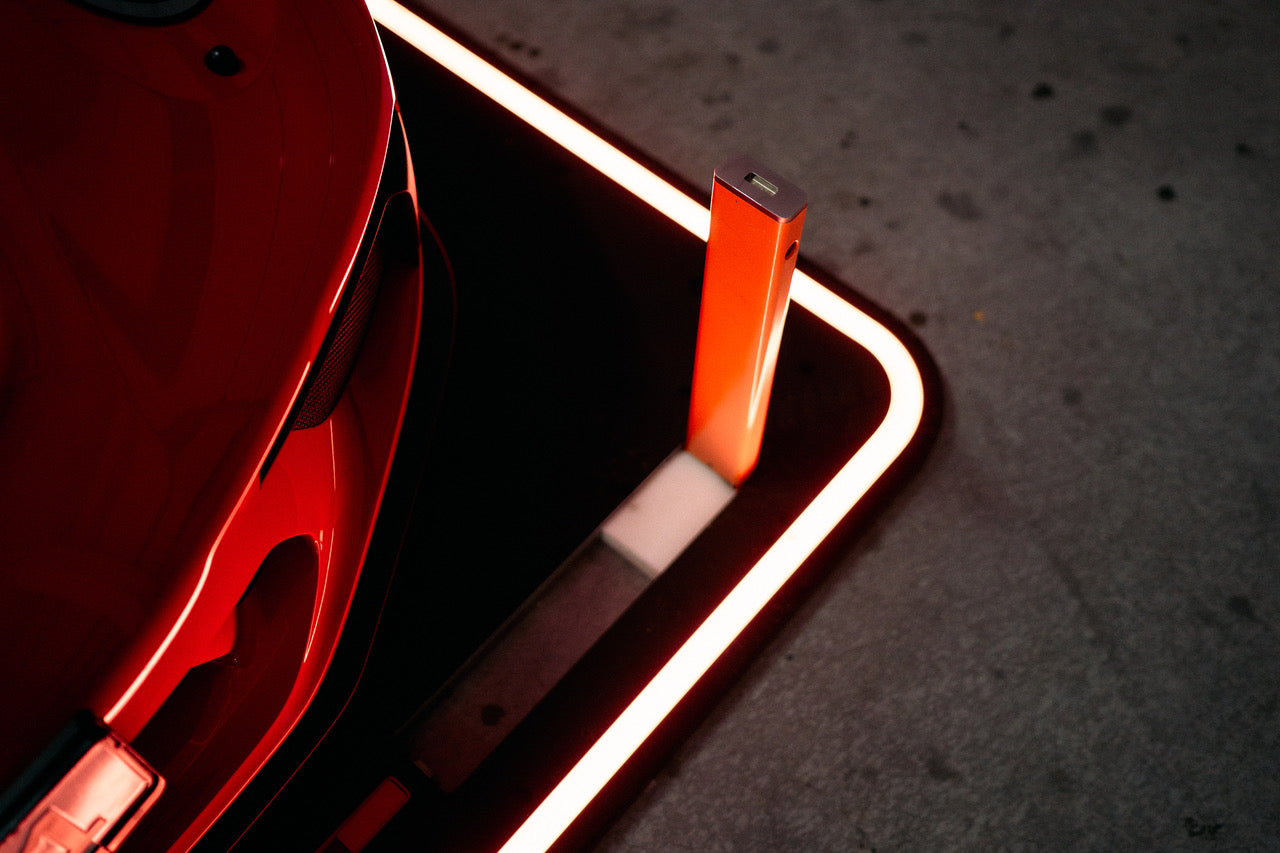

Two locking bolts rise and lock automatically within seconds, without tools or a key. Unlocking is done via a high-grade EVVA 4KS cylinder with a proprietary multi-stage release mechanism, built for daily reliability and long-term durability. The system is weatherproof for indoor and outdoor use, and fail-secure: the bolts remain locked even during a power outage.

Inside each bolt, a layered defense makes forced removal extremely difficult: a flex-resistant hardened steel outer shell over a solid core resists cutting discs and lever attacks; ball-bearing-mounted hardened manganese steel rods (1.3401 / X120Mn12) rotate under a cutting attempt, drastically slowing it down; an integrated core-pull protection sits directly inside the bolt with no separate component to attack or remove; and the entire construction is broadly anchored into the main frame, so bolt, pad, and vehicle become a single secured unit.

"The pad secures the vehicle, the vehicle secures the pad."

Features

Setup & approval
Standard parking-space footprint, no special surface required
No ground anchoring, freestanding, so no building permit required and no structural intervention
Locking & operation
Two locking bolts, deployed in seconds without tools, lock automatically without a key
Unlocking via high-grade EVVA 4KS cylinder
Proprietary multi-stage unlocking mechanism, built for everyday reliability and longevity
Everyday use

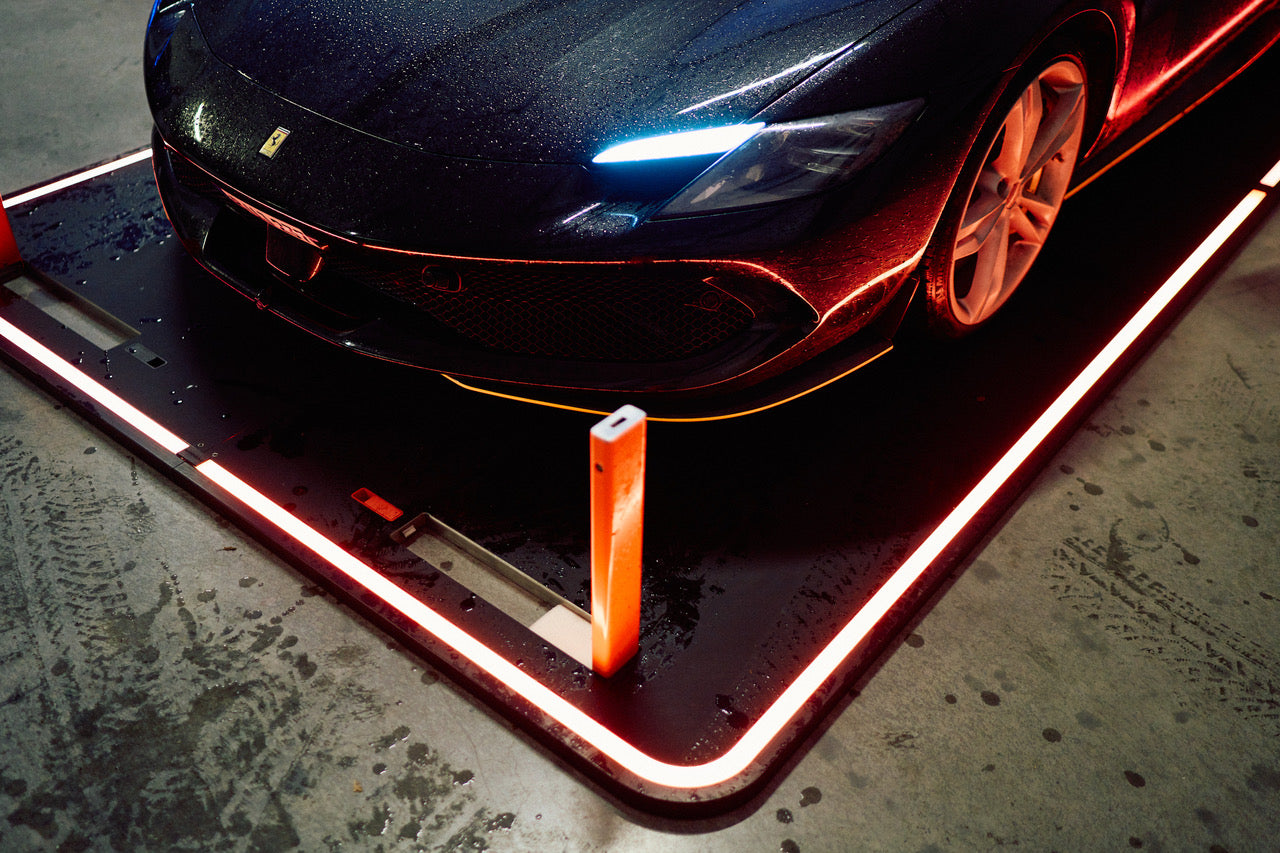

Weatherproof, suitable for all parking situations, indoors and outdoors
Fail-secure: bolts stay locked even during a power outage
Mechanical resistance
Flex-resistant hardened steel outer shell over a solid core, first line of defense against cutting discs and lever attacks
Rotating, ball-bearing-mounted hardened manganese steel rods (1.3401 / X120Mn12) that drastically hinder cutting attempts
Integrated core-pull protection built directly into the bolt
Broadly anchored into the main frame, so bolt, pad and vehicle become one secured unit

Specifications

Material platform
Aluminum, EN-AW 5754 (material no. 3.3535)
Footprint
5118 × 2384 mm
Weight
293 kg
Bolt spacing
1550 mm
Locking height
490 mm
Bolt material
Hardened steel + hardened manganese steel, 1.3401 (X120Mn12)
Lock cylinder
EVVA 4KS, integrated core-pull protection
Locking mechanism
Self-locking, form-fit, fail-secure
Resistance class
Independent certification in progress (VdS)

Use cases

Private owners
Private parking spots, public underground garages, tandem parking or outdoor areas on private property
Reliably protects vehicles that are moved infrequently
Showrooms and car retail
Full security during display, including outside opening hours
Private clubs and event locations
Exclusive vehicles displayed in accessible spaces, visible but not driveable away

PRE-REGISTRATION

Register for early access

One email address secures your place in the allocation order for the first production run. No obligation.
